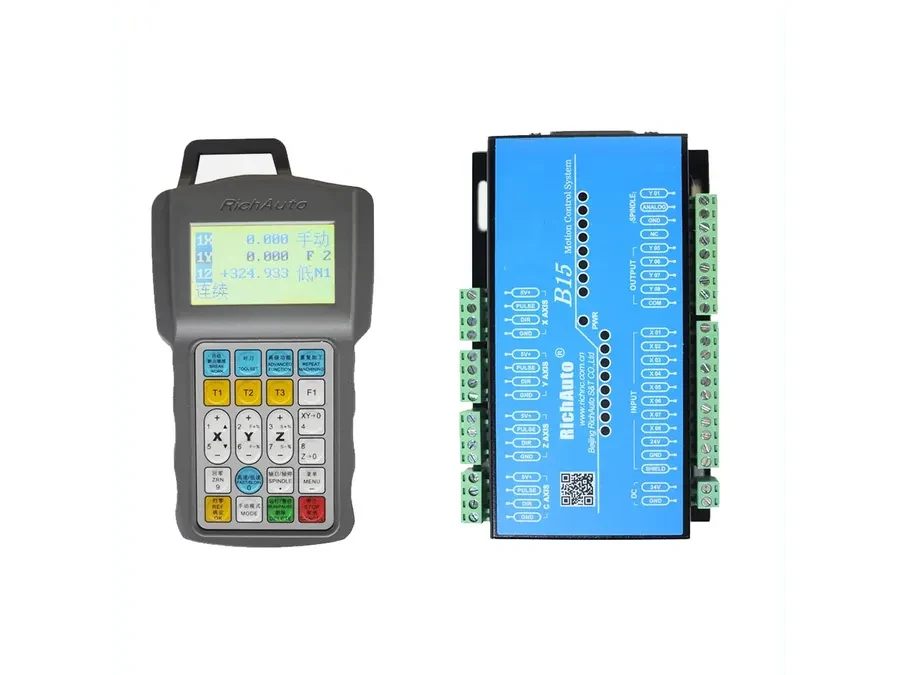

RichAuto B15 DSP Controller
3-axis B-series controller with multi-cylinder control, foot switch and organized cabinet wiring.
Multi-CylinderFoot SwitchAuto-RepeatI/O Indicators24V DCBreakpoint Resume
Documented model information verified.Replacing an existing controller? Send your current model label and machine configuration before ordering. We verify interface board, control signal, wiring and hardware revision wherever these affect compatibility.
IS THIS MODEL RIGHT FOR YOUR MACHINE?
B15 May Be a Good Fit If You Need:
Good fit for
- You run multi-spindle or cylinder-control machines
- You want foot-switch and single-cycle auto-repeat operation
- You value self-diagnostic I/O indicators on the board
- You are replacing an A15 or older handle with the B-series
Consider another model if you need
- You need 4-axis rotary machining
- You need ATC tool magazine control
- You want a color display
SPECIFICATIONS
B15 Technical Specifications.
| Product model | B15 |
|---|---|
| Series | B1X |
| CPU | DSP |
| Internal memory | 512 MB |
| Display | Monochrome · 128×64 |
| Communication | U disk · USB cable |
| Controlled axes | 3 axes · XYZ 3-axis interpolation |
| Control signal | Differential |
| Drive system | Stepper / Servo |
| I/O | 8 inputs / 8 outputs |
| Minimum input unit | 0.001 mm |
| Max. pulse frequency | 1 MHz |
| Power supply | 24V DC |
| Interpolation | Line, Arc, Curve |
| Breakpoint resume | Supported |
| Power-failure recovery | Supported |
| Soft / hard limit | Supported |
| Password protection | Supported |
| Rotary axis | Not supported |
| ATC support | Not supported |
| Multi-spindle / cylinders | Supported (up to 4 cylinders) |
| Plasma control | Not supported |
| Dispensing control | Not supported |
| Handwheel / MPG | Not supported |
| Network / PC control | Not supported |
KEY FUNCTIONS
What the B15 Brings to Your Machine.
- New-generation professional handle with improved key panel
- Interface board with input/output indicator lights for troubleshooting
- Foot-switch function and single essential auto-repeat machining
- Multi-cylinder control with free, efficient tool switching
- Built-in mill-plane function with configurable parameters
- Breakpoint continuation, power-failure protection and part work
COMPARE RELATED CONTROLLERS
Compare B15 with Related Controllers.
Related options help you avoid choosing a neighboring model by accident. Cards marked “different platform” are not direct replacements.
| Model | Main use | Axes | Display | I/O | Key capability | Relationship |
|---|---|---|---|---|---|---|
| B15 | 3-axis B-series controller with multi-cylinder control, foot switch and organized cabinet wiring. | 3 axes | 128×64 | 8/8 | 3-axis B-series controller with multi-cylinder control, foot switch and organized cabinet wiring. | This page |
Also see:
A12, A132, A14, B57 and F1410 are special-purpose models. Related cards there show platform comparisons, not interchangeability.
REPLACEMENT & UPGRADE NOTES
Ordering B15 as a Replacement.
Multi-cylinder wiring depends on the cylinder and inverter arrangement. Send machine type, spindle/cylinder count and T-command details with your inquiry.
- Cylinder and spindle links must be verified against machine wiring
DOWNLOADS
B15 Manuals, Wiring & Firmware.
Public manuals and general wiring references are free to download. Revision-sensitive firmware and diagrams are released after the controller details are verified.
FAQ
B15 — Questions to Check Before Ordering.
What is B15 best used for?
Multi-cylinder and multi-spindle machines where T-command tool switching, foot switch and auto-repeat workflows are required.
Does B15 have diagnostic support?
The interface board includes input and output port indicator lights for self-detection and troubleshooting.
Can B15 run as a standard 3-axis controller?
Yes, it retains full 3-axis motion control, but its extra value is cylinder and multi-spindle handling.
What should I send for a B15 quote?
Machine type, spindle/cylinder count, T-command wiring and current controller.
