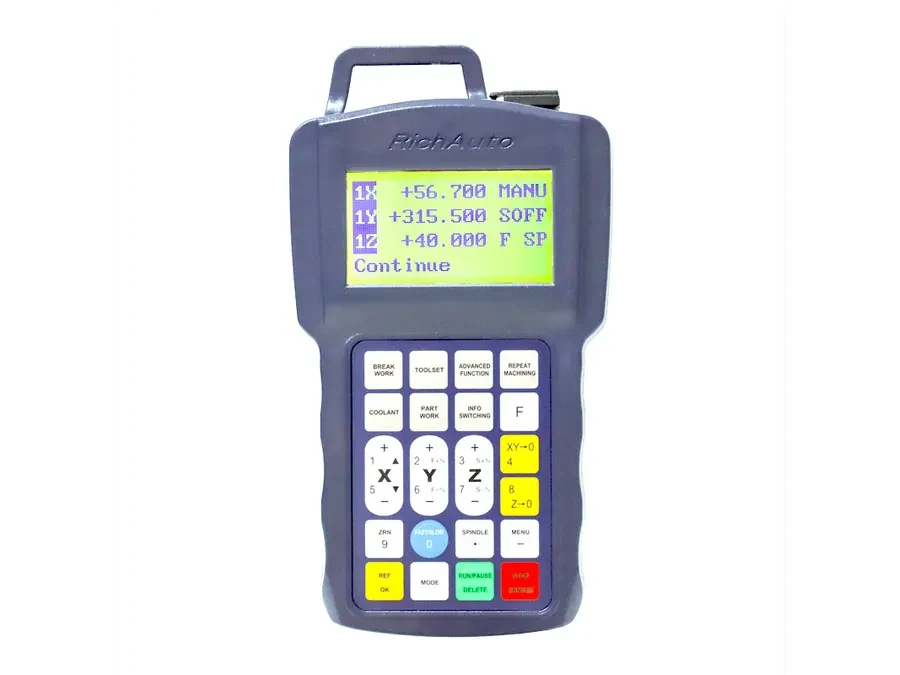

RichAuto B11 DSP Controller
3-axis B-series handheld controller with spline interpolation, exchangeable with A1X panels.
3-Axis LinkageA1X ExchangeSpline Interp8I/8O24V DCBreakpoint Resume
Documented model information verified.Replacing an existing controller? Send your current model label and machine configuration before ordering. We verify interface board, control signal, wiring and hardware revision wherever these affect compatibility.
IS THIS MODEL RIGHT FOR YOUR MACHINE?
B11 May Be a Good Fit If You Need:
Good fit for
- You run a standard 3-axis CNC router or engraver
- You are replacing an A1X controller and want the B-series panel
- You want endless breakpoint resume and power-failure recovery
- You need a compact handheld keypad with alarms
Consider another model if you need
- You need 4-axis or rotary machining
- You need ATC or multiple spindles
- You want a color display or networked control
SPECIFICATIONS
B11 Technical Specifications.
| Product model | B11 |
|---|---|
| Series | B1X |
| CPU | DSP |
| Internal memory | 512 MB |
| Display | Monochrome · 128×64 |
| Communication | U disk · USB cable |
| Controlled axes | 3 axes · XYZ 3-axis interpolation |
| Control signal | Differential |
| Drive system | Stepper / Servo |
| I/O | 8 inputs / 8 outputs |
| Minimum input unit | 0.001 mm |
| Max. pulse frequency | 1 MHz |
| Power supply | 24V DC |
| Interpolation | Line, Arc, Curve |
| Breakpoint resume | Supported |
| Power-failure recovery | Supported |
| Soft / hard limit | Supported |
| Password protection | Supported |
| Rotary axis | Not supported |
| ATC support | Not supported |
| Multi-spindle / cylinders | Not supported |
| Plasma control | Not supported |
| Dispensing control | Not supported |
| Handwheel / MPG | Not supported |
| Network / PC control | Not supported |
KEY FUNCTIONS
What the B11 Brings to Your Machine.
- 3-axis interpolation motion control
- Can exchange with A1X panels for machine upgrades
- 9 workpiece coordinates and 8 breakpoint storage positions
- Mobile and fixed calibration with configurable tool-set position/speed
- Alarms for drivers, inverters, E-stop and hard limits
- Array work, mill plane, scale and part work support
COMPARE RELATED CONTROLLERS
Compare B11 with Related Controllers.
Related options help you avoid choosing a neighboring model by accident. Cards marked “different platform” are not direct replacements.
| Model | Main use | Axes | Display | I/O | Key capability | Relationship |
|---|---|---|---|---|---|---|
| B11 | 3-axis B-series handheld controller with spline interpolation, exchangeable with A1X panels. | 3 axes | 128×64 | 8/8 | 3-axis B-series handheld controller with spline interpolation, exchangeable with A1X panels. | This page |
Also see:
A12, A132, A14, B57 and F1410 are special-purpose models. Related cards there show platform comparisons, not interchangeability.
REPLACEMENT & UPGRADE NOTES
Ordering B11 as a Replacement.
B11 can be exchanged with an A1X controller at the wiring board level in compatible machines, but confirm the signal type and interface board with CINKR before ordering.
- Verify signal and board compatibility when exchanging from A1X
DOWNLOADS
B11 Manuals, Wiring & Firmware.
Public manuals and general wiring references are free to download. Revision-sensitive firmware and diagrams are released after the controller details are verified.
FAQ
B11 — Questions to Check Before Ordering.
Can B11 replace an A11?
B11 shares the 3-axis DSP architecture and can exchange with A1X panels in compatible machines; confirm the interface board and wiring with CINKR before ordering.
What does the B-series add over A1X?
B1X adds spline interpolation and refines the keypad and wiring layout while keeping breakpoint and power-failure recovery.
How many coordinates and breakpoints does B11 support?
9 workpiece coordinates and 8 breakpoint storage positions.
Which machines suit B11?
Woodworking, advertising, stone carving and mold engraving machines with standard 3-axis motion.
