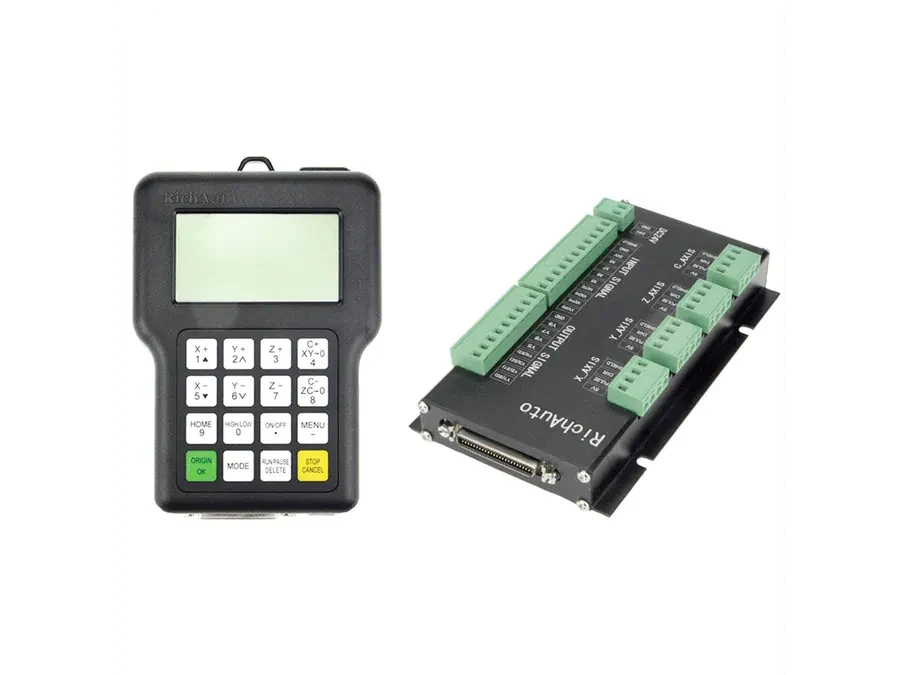

RichAuto A11 DSP Controller
Standard 3-axis handheld DSP controller for CNC routers and engraving machines.
3-Axis128×64 Display24V DCUSB + U Disk0.001 mmBreakpoint Resume
Documented model information verified.Replacing an existing controller? Send your current model label and machine configuration before ordering. We verify interface board, control signal, wiring and hardware revision wherever these affect compatibility.
IS THIS MODEL RIGHT FOR YOUR MACHINE?
A11 May Be a Good Fit If You Need:
Good fit for
- You run a standard 3-axis CNC router or engraving machine
- You want a simple, proven offline controller for G-code files
- You are replacing an existing A11 or similar 3-axis DSP
- You want breakpoint and power-failure resume in a compact handheld unit
Consider another model if you need
- You need a 4-axis or rotary machining workflow
- You need ATC tool changing or multiple spindles
- You want a 5-inch color display or networked control
- You must keep an unknown legacy interface board without switching signals
SPECIFICATIONS
A11 Technical Specifications.
| Product model | A11 |
|---|---|
| Series | A1X |
| CPU | DSP |
| Internal memory | 512 MB |
| Display | Monochrome · 128×64 |
| Communication | U disk · USB cable |
| Controlled axes | 3 axes · XYZ 3-axis linkage |
| Control signal | Differential |
| Drive system | Stepper / Servo |
| I/O | 8 inputs / 8 outputs |
| Minimum input unit | 0.001 mm |
| Max. pulse frequency | 1 MHz |
| Power supply | 24V DC |
| Interpolation | Line, Arc, Curve |
| Breakpoint resume | Supported |
| Power-failure recovery | Supported |
| Soft / hard limit | Supported |
| Password protection | Supported |
| Rotary axis | Not supported |
| ATC support | Not supported |
| Multi-spindle / cylinders | Not supported |
| Plasma control | Not supported |
| Dispensing control | Not supported |
| Handwheel / MPG | Not supported |
| Network / PC control | Not supported |
KEY FUNCTIONS
What the A11 Brings to Your Machine.
- 3-axis linkage motion control with line, arc and curve interpolation
- Intelligent processing memory with power-failure and breakpoint functions
- Intelligent file checking plus parameter backup and restore
- Definable I/O interfaces for customization and secondary development
- Drive and spindle error alarms with robust anti-jamming (CE-tested)
- A11E (English keypad) and A11S (English + Chinese keypad) variants
COMPARE RELATED CONTROLLERS
Compare A11 with Related Controllers.
Related options help you avoid choosing a neighboring model by accident. Cards marked “different platform” are not direct replacements.
| Model | Main use | Axes | Display | I/O | Key capability | Relationship |
|---|---|---|---|---|---|---|
| A11 | Standard 3-axis handheld DSP controller for CNC routers and engraving machines. | 3 axes | 128×64 | 8/8 | Standard 3-axis handheld DSP controller for CNC routers and engraving machines. | This page |
Also see:
A12, A132, A14, B57 and F1410 are special-purpose models. Related cards there show platform comparisons, not interchangeability.
REPLACEMENT & UPGRADE NOTES
Ordering A11 as a Replacement.
Older A11 units use a 5V power supply; newer production uses 24V DC. A new wiring board works with both old and new DSP handles, but a new-model DSP must not be run on an old wiring board. Confirm the wiring board and hardware revision before ordering a replacement.
- Old 5V vs new 24V hardware revision must be checked
- A11E/A11S share the same system; only the keypad language differs
DOWNLOADS
A11 Manuals, Wiring & Firmware.
Public manuals and general wiring references are free to download. Revision-sensitive firmware and diagrams are released after the controller details are verified.
A11 Standard Upgrade Program
Firmware packages must match the exact model, hardware revision and current version.
Available after model / hardware verification — request it through CINKR.FAQ
A11 — Questions to Check Before Ordering.
What is the difference between A11E and A11S?
Operation and system software are the same; language can be switched in the DSP menu. The only difference is the keypad print: A11E is English only (default), A11S adds Chinese on the handle surface.
Can I connect the A11 to my existing wiring?
That must be verified first. Old-model A11 units use a 5V power supply while new models use 24V, and the wiring board generations differ. Check the interface board and hardware revision before ordering.
Which file formats does the A11 read?
The A11 family processes standard G-code files from U disk, plus PLT and DXF formats on the A11 PLUS platform. Confirm your CAM/software output with the manual.
What information should I send before ordering a replacement?
Send the current controller model or label photo, machine type, axis count, and a photo of the existing interface board so compatibility can be checked before quotation.
