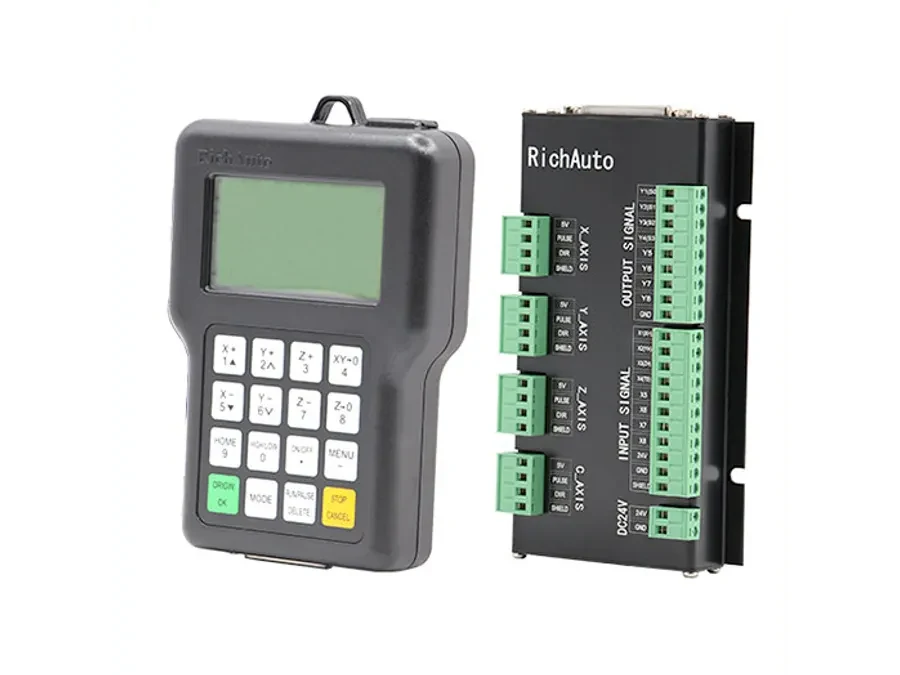

RichAuto A12 Plasma Cutting DSP Controller
Plasma and flame cutting motion controller with arc-voltage control, cylinder delay and strong interference protection.
Plasma Specific8-Core CPUArc-Voltage Control24V DCZ-Axis IsolationBreakpoint Resume
Core specifications verified from model documentation.Replacing an existing controller? Send your current model label and machine configuration before ordering. We verify interface board, control signal, wiring and hardware revision wherever these affect compatibility.
IS THIS MODEL RIGHT FOR YOUR MACHINE?
A12 May Be a Good Fit If You Need:
Good fit for
- You cut with plasma or flame on a CNC gantry
- You need arc-voltage adjusting control and cylinder delay
- You work in electrically noisy environments
- You want border testing for convenient material placement
Consider another model if you need
- You only need standard wood routing
- You need a 4-axis or rotary machining workflow
- You want a color screen or networked control
SPECIFICATIONS
A12 Technical Specifications.
| Product model | A12 |
|---|---|
| Series | A1X |
| CPU | DSP |
| Internal memory | 512 MB |
| Display | Monochrome · 128×64 |
| Communication | U disk · USB cable |
| Controlled axes | 3 axes · XYZ plasma motion control |
| Control signal | Differential |
| Drive system | Stepper / Servo |
| I/O | 8 inputs / 8 outputs |
| Minimum input unit | 0.001 mm |
| Max. pulse frequency | 1 MHz |
| Power supply | 24V DC |
| Interpolation | Line, Arc, Curve |
| Breakpoint resume | Supported |
| Power-failure recovery | Supported |
| Soft / hard limit | Supported |
| Password protection | Supported |
| Rotary axis | Not supported |
| ATC support | Not supported |
| Multi-spindle / cylinders | Not supported |
| Plasma control | Supported |
| Dispensing control | Not supported |
| Handwheel / MPG | Not supported |
| Network / PC control | Not supported |
KEY FUNCTIONS
What the A12 Brings to Your Machine.
- Plasma-specific computing mode to reduce damage during cutting
- 8-core CPU for faster calculation and stronger processing
- Definable I/O for cylinders and plasma arc-voltage controllers
- Border testing function for material placement
- Multiple CE tests for robust anti-jamming
- 512MB internal memory with parameter backup and restore
COMPARE RELATED CONTROLLERS
Compare A12 with Related Controllers.
Related options help you avoid choosing a neighboring model by accident. Cards marked “different platform” are not direct replacements.
| Model | Main use | Axes | Display | I/O | Key capability | Relationship |
|---|---|---|---|---|---|---|
| A12 | Plasma and flame cutting motion controller with arc-voltage control, cylinder delay and strong interference protection. | 3 axes | 128×64 | 8/8 | Plasma and flame cutting motion controller with arc-voltage control, cylinder delay and strong interference protection. | This page |
