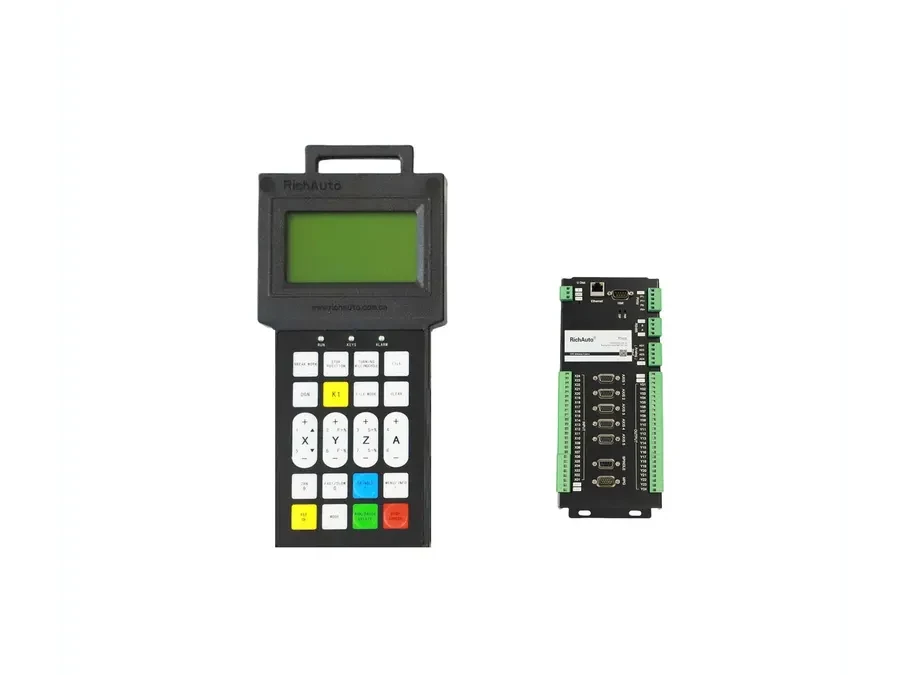

RichAuto F741 4-Axis Motion Controller
Networked 4-axis controller with 12 rotary positions, expanded I/O and secondary development.
4-Axis12 Rotary PositionsFTP / U Disk24I/24O Opt.Waterproof HandleSecondary Dev
Core specifications verified from model documentation.Replacing an existing controller? Send your current model label and machine configuration before ordering. We verify interface board, control signal, wiring and hardware revision wherever these affect compatibility.
IS THIS MODEL RIGHT FOR YOUR MACHINE?
F741 May Be a Good Fit If You Need:
Good fit for
- You need 4-axis control with network or PC communication
- You run automated or multi-position machines
- You need higher-speed motion and customizable I/O
- You want secondary development for custom machine logic
Consider another model if you need
- You need a simple 3-axis replacement with minimal rewiring
- You prefer a standalone color-screen handheld
- You must retain an unknown legacy interface board
SPECIFICATIONS
F741 Technical Specifications.
| Product model | F741 |
|---|---|
| Series | F7X |
| CPU | DSP |
| Internal memory | 512 MB |
| Display | Configurable · Customizable |
| Communication | U disk · Network |
| Controlled axes | 4 axes · 4-axis linkage (published; confirm config) |
| Control signal | Differential |
| Drive system | Stepper / Servo |
| I/O | 16 inputs / 8 outputs · 24I/24O board for servo-driver configurations |
| Minimum input unit | 0.001 mm |
| Max. pulse frequency | published 4 / 10 (confirm by hardware revision) |
| Power supply | 24V DC |
| Interpolation | Line, Arc, Curve |
| Breakpoint resume | Supported |
| Power-failure recovery | Supported |
| Soft / hard limit | Supported |
| Password protection | Supported |
| Rotary axis | Supported |
| ATC support | Not supported |
| Multi-spindle / cylinders | Supported |
| Plasma control | Not supported |
| Dispensing control | Supported |
| Handwheel / MPG | Not supported |
| Network / PC control | Supported |
KEY FUNCTIONS
What the F741 Brings to Your Machine.
- 4-axis linkage motion control
- Supports up to 12 rotary work positions
- File transfer by U disk or PC/FTP over network cable
- Waterproof and dustproof handle with LED status lights
- 16I/8O stepper board or 24I/24O servo-driver board
- Secondary development for software functions and I/O definition
COMPARE RELATED CONTROLLERS
Compare F741 with Related Controllers.
Related options help you avoid choosing a neighboring model by accident. Cards marked “different platform” are not direct replacements.
| Model | Main use | Axes | Display | I/O | Key capability | Relationship |
|---|---|---|---|---|---|---|
| F741 | Networked 4-axis controller with 12 rotary positions, expanded I/O and secondary development. | 4 axes | Customizable | 16/8 | Networked 4-axis controller with 12 rotary positions, expanded I/O and secondary development. | This page |
Also see:
A12, A132, A14, B57 and F1410 are special-purpose models. Related cards there show platform comparisons, not interchangeability.
REPLACEMENT & UPGRADE NOTES
Ordering F741 as a Replacement.
F741 is an integrated control platform rather than a handheld swap. When upgrading from A/B-series or other controllers, review the complete electrical and control architecture first: drive signals, I/O, communication, machine logic and wiring.
- F7X pulse spec conflicts across documents (4 vs 10 MHz)
- One F741 page row lists 3-axis; the system is the 4-axis model - confirm machine configuration
DOWNLOADS
F741 Manuals, Wiring & Firmware.
Public manuals and general wiring references are free to download. Revision-sensitive firmware and diagrams are released after the controller details are verified.
F741 Servo Board Wiring
Terminal definitions, interface connections and installation references.
Available after model / hardware verification — request it through CINKR.FAQ
F741 — Questions to Check Before Ordering.
When should I choose F741 instead of a standard handheld DSP controller?
F741 is more relevant when the machine needs 4-axis control with network communication, PC integration, higher-speed motion, or secondary development. For a simple 3-axis machine, a simpler controller may be more appropriate.
Can F741 directly replace an A-series or B-series controller?
Treat this as a machine-control upgrade rather than a direct swap. Wiring, interface boards, drive signals, I/O, communication, parameters and machine logic may differ significantly.
Does F741 support PC or network integration?
Yes, F741 is intended for applications where communication and host-system integration matter; confirm method, software environment and network architecture for the project.
What information is needed before ordering F741?
Machine type, axis count, drive system, control signals, required I/O, communication requirements, current controller and any secondary-development needs; electrical drawings are especially useful for upgrades.
