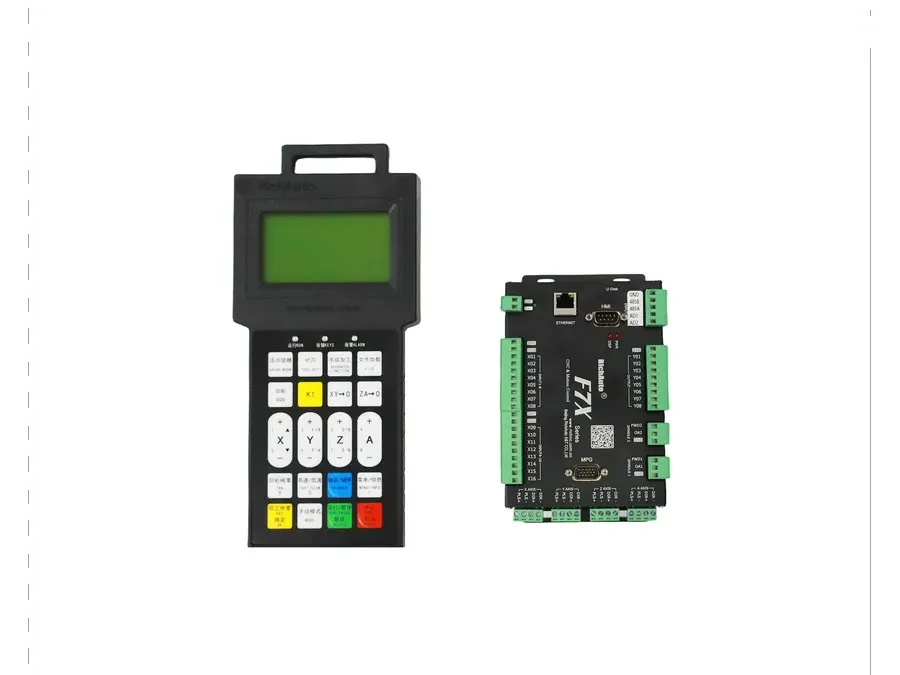

RichAuto F731 Motion Controller
Networked 3-5 axis motion controller with Ethernet/FTP, 10 MHz pulse, and PC multi-machine support.
Ethernet/FTP10 MHz Pulse3-5 AxisOffline FallbackMulti-MachineManual Pulse
Core specifications verified from model documentation.Replacing an existing controller? Send your current model label and machine configuration before ordering. We verify interface board, control signal, wiring and hardware revision wherever these affect compatibility.
IS THIS MODEL RIGHT FOR YOUR MACHINE?
F731 May Be a Good Fit If You Need:
Good fit for
- You need PC or network control of a CNC machine
- You run production lines or multiple machines from one PC
- You want offline processing to continue if the PC fails
- You need higher-speed motion and expanded communication
Consider another model if you need
- You want a standalone handheld with a fixed display
- You need only a simple 3-axis router
- You prefer a compact monochrome workflow
SPECIFICATIONS
F731 Technical Specifications.
| Product model | F731 |
|---|---|
| Series | F7X |
| CPU | DSP |
| Internal memory | 512 MB |
| Display | Configurable · Customizable |
| Communication | U disk · Network |
| Controlled axes | 3 to 5 axes · 2-6 axes configurable (3-5 published) |
| Control signal | Differential |
| Drive system | Stepper / Servo |
| I/O | 16 inputs / 8 outputs · Supports up to 24I/24O motion board |
| Minimum input unit | 0.001 mm |
| Max. pulse frequency | published 4 / 10 (confirm by hardware revision) |
| Power supply | 24V DC |
| Interpolation | Line, Arc, Curve |
| Breakpoint resume | Supported |
| Power-failure recovery | Supported |
| Soft / hard limit | Supported |
| Password protection | Supported |
| Rotary axis | Not supported |
| ATC support | Not supported |
| Multi-spindle / cylinders | Not supported |
| Plasma control | Not supported |
| Dispensing control | Not supported |
| Handwheel / MPG | Supported |
| Network / PC control | Supported |
KEY FUNCTIONS
What the F731 Brings to Your Machine.
- Ethernet twisted-pair connection with stable data transfer
- One computer can control multiple machines
- Offline processing continues if the PC faults, then reconnects
- Supports G-code, PLT and ENG formats from major CAM software
- 10 MHz pulse output and manual pulse generator option
- 3D simulation, program simulation and system log diagnostics
COMPARE RELATED CONTROLLERS
Compare F731 with Related Controllers.
Related options help you avoid choosing a neighboring model by accident. Cards marked “different platform” are not direct replacements.
| Model | Main use | Axes | Display | I/O | Key capability | Relationship |
|---|---|---|---|---|---|---|
| F731 | Networked 3-5 axis motion controller with Ethernet/FTP, 10 MHz pulse, and PC multi-machine support. | 3-5 | Customizable | 16/8 | Networked 3-5 axis motion controller with Ethernet/FTP, 10 MHz pulse, and PC multi-machine support. | This page |
Also see:
A12, A132, A14, B57 and F1410 are special-purpose models. Related cards there show platform comparisons, not interchangeability.
REPLACEMENT & UPGRADE NOTES
Ordering F731 as a Replacement.
F731 is an installed control architecture rather than a handheld swap. Axis count is 3-5 published (2-6 configurable); confirm configuration, board revision and host-PC software with CINKR.
- F7X pulse spec conflicts across documents (4 vs 10 MHz)
- Axis configuration must be confirmed for 5-6 axis builds
DOWNLOADS
F731 Manuals, Wiring & Firmware.
Public manuals and general wiring references are free to download. Revision-sensitive firmware and diagrams are released after the controller details are verified.
F731 Servo Board Wiring
Terminal definitions, interface connections and installation references.
Available after model / hardware verification — request it through CINKR.FAQ
F731 — Questions to Check Before Ordering.
Does F731 work without a PC?
It supports fully offline work: if the computer fails during processing, the system continues and can be re-controlled after recovery.
How many axes can F731 handle?
The controller is published for 3-5 axes (configurable 2-6); confirm the exact machine configuration before ordering.
Can F731 control multiple machines?
Yes, one computer can control multiple machines over the network, which fits production lines.
Which pulse rate does F731 deliver?
The model page states 10 MHz; the F7X series page states 4 MHz. CINKR confirms pulse capability by hardware revision before recommending a specific unit.
REQUEST A QUOTE
Request a Quote for the F731
Tell us whether the F731 is for a new machine, upgrade, or replacement. Include existing hardware information where available. This form only prepares your message; nothing is submitted or stored.
