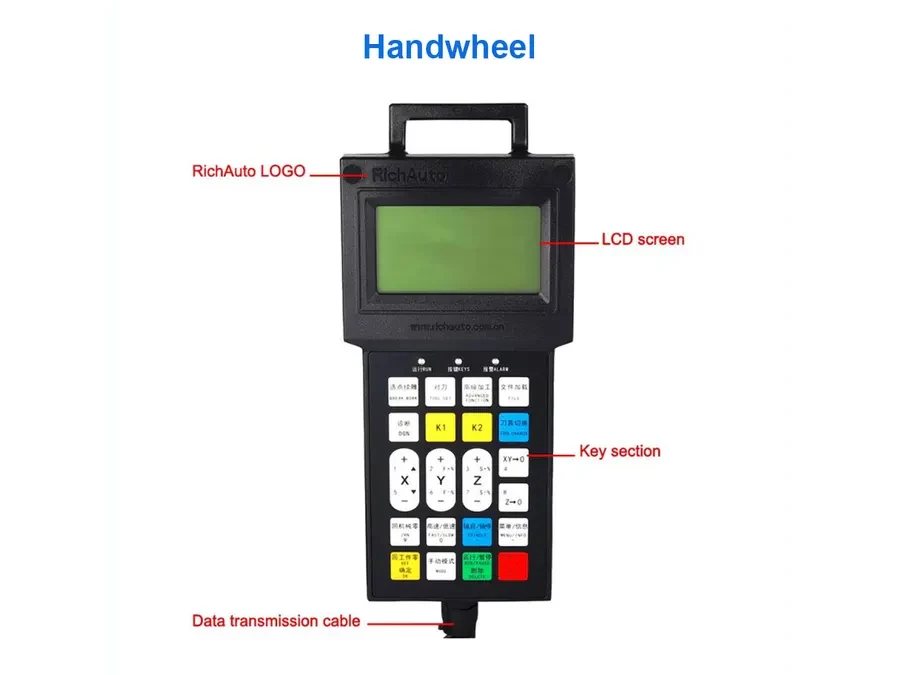

RichAuto F135 DSP Controller
3-axis color-screen controller for 1-4 cylinder multi-spindle machines with custom function buttons.
1-4 Cylinders5-Inch ColorT-Command16I/8OK1/K2 CustomBreakpoint Resume
Core specifications verified from model documentation.Replacing an existing controller? Send your current model label and machine configuration before ordering. We verify interface board, control signal, wiring and hardware revision wherever these affect compatibility.
IS THIS MODEL RIGHT FOR YOUR MACHINE?
F135 May Be a Good Fit If You Need:
Good fit for
- You run a multi-spindle or cylinder machine
- You want color-screen operation with T-command switching
- You need customizable function buttons (K1/K2)
- You want secondary development options for special workflows
Consider another model if you need
- You need 4-axis or rotary machining
- You need ATC tool magazine control
- You prefer a simpler monochrome handheld
SPECIFICATIONS
F135 Technical Specifications.
| Product model | F135 |
|---|---|
| Series | F1X |
| CPU | DSP |
| Internal memory | 512 MB |
| Display | Color · 5-inch |
| Communication | U disk · USB cable |
| Controlled axes | 3 axes · XYZ 3-axis linkage |
| Control signal | Differential |
| Drive system | Stepper / Servo |
| I/O | 16 inputs / 8 outputs |
| Minimum input unit | 0.001 mm |
| Max. pulse frequency | 1 MHz |
| Power supply | 24V DC |
| Interpolation | Line, Arc, Curve |
| Breakpoint resume | Supported |
| Power-failure recovery | Supported |
| Soft / hard limit | Supported |
| Password protection | Supported |
| Rotary axis | Not supported |
| ATC support | Not supported |
| Multi-spindle / cylinders | Supported (up to 4 cylinders) |
| Plasma control | Not supported |
| Dispensing control | Not supported |
| Handwheel / MPG | Not supported |
| Network / PC control | Not supported |
KEY FUNCTIONS
What the F135 Brings to Your Machine.
- 3-axis linkage with support for 1-4 cylinders
- Reads the T command to control cylinders and switch tools
- Free tool-space setup with automatic compensation
- Customizable K1/K2 function buttons
- Secondary development for feeding/unloading and unique processes
- 9 workpiece coordinates and 8 breakpoints
COMPARE RELATED CONTROLLERS
Compare F135 with Related Controllers.
Related options help you avoid choosing a neighboring model by accident. Cards marked “different platform” are not direct replacements.
| Model | Main use | Axes | Display | I/O | Key capability | Relationship |
|---|---|---|---|---|---|---|
| F135 | 3-axis color-screen controller for 1-4 cylinder multi-spindle machines with custom function buttons. | 3 axes | 5-inch | 16/8 | 3-axis color-screen controller for 1-4 cylinder multi-spindle machines with custom function buttons. | This page |
Also see:
A12, A132, A14, B57 and F1410 are special-purpose models. Related cards there show platform comparisons, not interchangeability.
REPLACEMENT & UPGRADE NOTES
Ordering F135 as a Replacement.
Multi-cylinder and cylinder-delay wiring varies by machine. Include spindle/cylinder count and T-command wiring with your inquiry.
- Cylinder wiring must be verified
- Confirmed as color-screen model from its own page; check with machine config
DOWNLOADS
F135 Manuals, Wiring & Firmware.
Public manuals and general wiring references are free to download. Revision-sensitive firmware and diagrams are released after the controller details are verified.
F135 Cylinder Inverter Wiring
Terminal definitions, interface connections and installation references.
Available after model / hardware verification — request it through CINKR.FAQ
F135 — Questions to Check Before Ordering.
How many cylinders can F135 control?
F135 supports 1-4 cylinders with T-command tool switching.
Does F135 have a color display?
Yes, the F135 model page specifies a 5-inch color screen, which separates it from the monochrome F1X members.
Can F135 be customized?
K1/K2 function buttons and secondary development support feeding/unloading and unique processes.
What is needed for an F135 quote?
Spindle/cylinder count, T-command wiring, machine type and current controller.
